#include <Header7.h>
Protected Attributes | |
| union { | |
| struct { | |
| union { | |
| struct { | |
| KUINT8 m_ui8PDUStatusBit5: 1 | |
| KUINT8 m_ui8PDUStatusFTI: 1 | |
| } | |
| KUINT8 m_ui8PDUStatusDTI_RAI_IAI: 2 | |
| } | |
| KUINT8 m_ui8PDUStatusBit6: 1 | |
| KUINT8 m_ui8PDUStatusCEI: 1 | |
| KUINT8 m_ui8PDUStatusLVC: 2 | |
| KUINT8 m_ui8PDUStatusSM: 1 | |
| KUINT8 m_ui8PDUStatusTEI: 1 | |
| } | |
| KUINT8 m_ui8PDUStatus | |
| } | m_PDUStatusUnion |
 Protected Attributes inherited from Header6 | |
| KDIS::DATA_TYPE::TimeStamp | m_TimeStamp |
| KUINT16 | m_ui16PDULength |
| KUINT8 | m_ui8ExerciseID |
| KUINT8 | m_ui8Padding1 |
| KUINT8 | m_ui8Padding2 |
| KUINT8 | m_ui8PDUType |
| KUINT8 | m_ui8ProtocolFamily |
| KUINT8 | m_ui8ProtocolVersion |
Additional Inherited Members | |
| Static Public Attributes inherited from Header6 | |
| static const KUINT16 | HEADER6_PDU_SIZE = 12 |
| Header7 | ( | ) |
| Header7 | ( | KDataStream & | stream | ) | |
| throw | ( | KException | |||
| ) | |||||
| Header7 | ( | KDIS::DATA_TYPE::ENUMS::ProtocolVersion | PV, |
| KUINT8 | ExerciseID, | ||
| KDIS::DATA_TYPE::ENUMS::PDUType | PT, | ||
| KDIS::DATA_TYPE::ENUMS::ProtocolFamily | PF, | ||
| const KDIS::DATA_TYPE::TimeStamp & | TS, | ||
| KUINT16 | PDULength | ||
| ) |
|
virtual |
| KUINT8 GetPDUStatus | ( | ) | const |
| void SetPDUStatusCEI | ( | KBOOL | CEI | ) |
| KBOOL GetPDUStatusCEI | ( | ) | const |
| void SetPDUStatusTEI | ( | KBOOL | TEI | ) |
PDU: See Header7 description to see which PDU's use this field.
Description: Identifies whether the Simulation Address of the Entity ID contained in this PDU is the owner of the entity. false(0) = no difference. The Simulation Address of the Entity ID is the owner of Indicator. true(1) = difference. The Simulation Address of the Entity ID is not the owner of this entity.
| KBOOL GetPDUStatusTEI | ( | ) | const |
| void SetPDUStatusLVC | ( | KDIS::DATA_TYPE::ENUMS::LVCIndicator | LVC | ) |
Description: Indicates whether the data contained in this PDU is related to a live(1), virtual(2) or constructive(3) entity. If the LVC designation is not able to be determined, this field shall be set to No Statement(0). http://en.wikipedia.org/wiki/Live,_Virtual,_and_Constructive PDU: See Header7 description to see which PDU's use this field.
| KDIS::DATA_TYPE::ENUMS::LVCIndicator GetPDUStatusLVC | ( | ) | const |
| void SetPDUStatusFTI | ( | KBOOL | FTI | ) |
Description: Indicates whether the type of object fired was a Munition false(0) or an Expendable true(1). PDU: Fire(2)
| KBOOL GetPDUStatusFTI | ( | ) | const |
| void SetPDUStatusDTI | ( | KDIS::DATA_TYPE::ENUMS::DetonationType | DTI | ) |
Description: Indicates whether the type of object that detonated, exploded or burst was a Munition (0), Expendable (1), or Non-Munition Explosion (2). PDU: Detonation(3)
| KDIS::DATA_TYPE::ENUMS::DetonationType GetPDUStatusDTI | ( | ) | const |
| void SetPDUStatusRAI | ( | KDIS::DATA_TYPE::ENUMS::AttachedIndicator | RAI | ) |
Description: Used to indicate whether the radio transmitter or receiver is attached to an entity or object as follows: No Statement(0), Unattached (1) and Attached (2). PDU: Transmitter(25), Signal(26), Receiver(27)
| KDIS::DATA_TYPE::ENUMS::AttachedIndicator GetPDUStatusRAI | ( | ) | const |
| void SetPDUStatusIAI | ( | KDIS::DATA_TYPE::ENUMS::AttachedIndicator | RAI | ) |
Description: Used to indicate whether the intercom is attached to an entity or object as follows: No Statement(0), Unattached (1) and Attached (2). PDU: IntercomSignal(31), IntercomControl(32)
| KDIS::DATA_TYPE::ENUMS::AttachedIndicator GetPDUStatusIAI | ( | ) | const |
| void SetPDUStatusSM | ( | KBOOL | SM | ) |
| KBOOL GetPDUStatusSM | ( | ) | const |
|
virtual |
Description: Returns a string representation of the PDU.
Reimplemented from Header6.

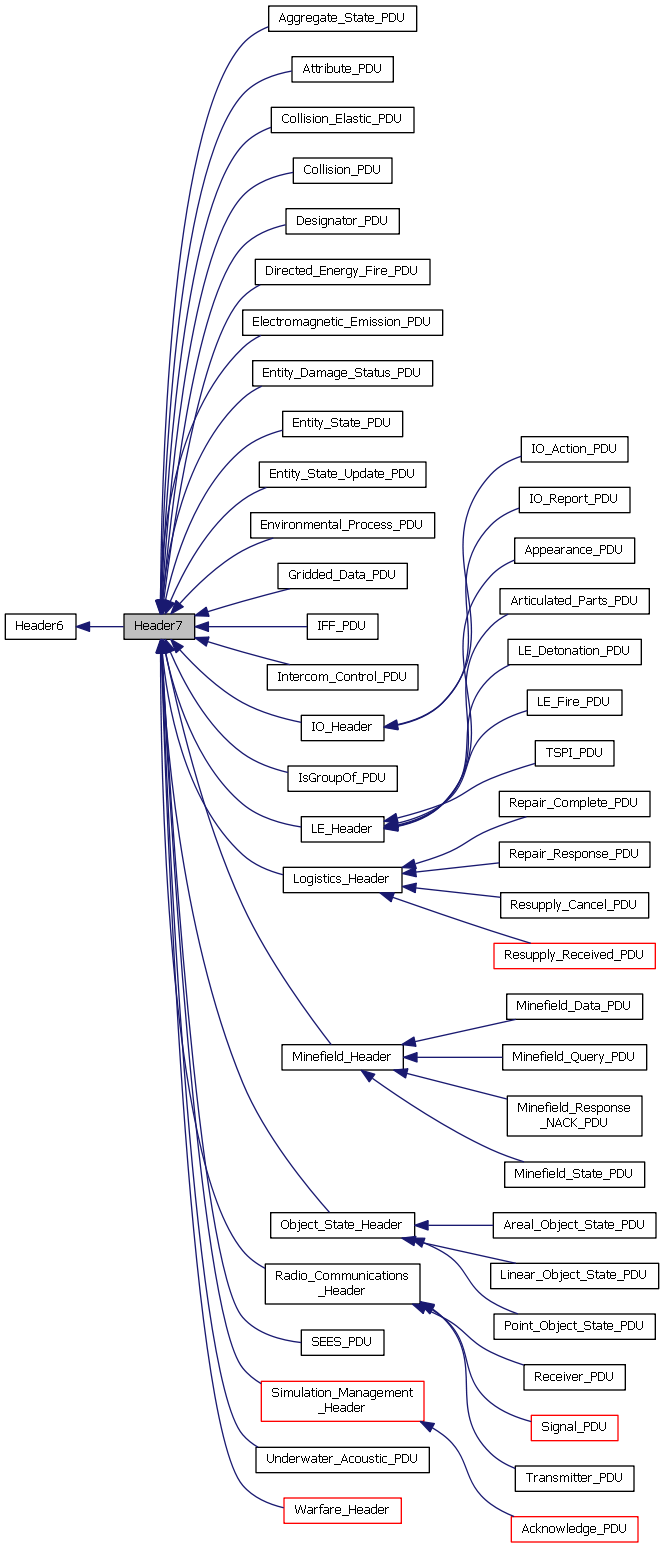

Reimplemented in Aggregate_State_PDU, Entity_State_PDU, LE_Detonation_PDU, Directed_Energy_Fire_PDU, Appearance_PDU, Gridded_Data_PDU, TSPI_PDU, Transmitter_PDU, Environmental_Process_PDU, Minefield_Data_PDU, Intercom_Control_PDU, LE_Fire_PDU, Minefield_State_PDU, Collision_Elastic_PDU, IFF_PDU, IO_Action_PDU, Designator_PDU, Underwater_Acoustic_PDU, Minefield_Query_PDU, Point_Object_State_PDU, IsGroupOf_PDU, Detonation_PDU, Areal_Object_State_PDU, SEES_PDU, Collision_PDU, Entity_State_Update_PDU, Attribute_PDU, IO_Report_PDU, Fire_PDU, Transfer_Control_Request_PDU, Electromagnetic_Emission_PDU, Data_Query_PDU, Linear_Object_State_PDU, Signal_PDU, IsPartOf_PDU, Record_Query_R_PDU, Minefield_Response_NACK_PDU, Receiver_PDU, Stop_Freeze_PDU, Comment_PDU, Object_State_Header, Warfare_Header, Acknowledge_PDU, Entity_Damage_Status_PDU, Start_Resume_PDU, Set_Record_R_PDU, Radio_Communications_Header, Resupply_Received_PDU, Articulated_Parts_PDU, Simulation_Management_Header, Record_R_PDU, IO_Header, LE_Header, Logistics_Header, Action_Request_PDU, Repair_Response_PDU, Data_PDU, Event_Report_PDU, Minefield_Header, Action_Response_PDU, Create_Entity_PDU, Acknowledge_R_PDU, Repair_Complete_PDU, Service_Request_PDU, Create_Entity_R_PDU, Stop_Freeze_R_PDU, Start_Resume_R_PDU, Data_R_PDU, Action_Request_R_PDU, Remove_Entity_R_PDU, Intercom_Signal_PDU, Event_Report_R_PDU, Remove_Entity_PDU, Action_Response_R_PDU, Resupply_Offer_PDU, Set_Data_PDU, Comment_R_PDU, Set_Data_R_PDU, Resupply_Cancel_PDU, and Data_Query_R_PDU.
|
virtual | ||||||||||||||||||||
Description: Convert From Network Data.
Reimplemented from Header6.
Reimplemented in Aggregate_State_PDU, Entity_State_PDU, LE_Detonation_PDU, Directed_Energy_Fire_PDU, Appearance_PDU, Gridded_Data_PDU, TSPI_PDU, Transmitter_PDU, Environmental_Process_PDU, Minefield_Data_PDU, Intercom_Control_PDU, LE_Fire_PDU, Minefield_State_PDU, Collision_Elastic_PDU, IFF_PDU, IO_Action_PDU, Designator_PDU, Underwater_Acoustic_PDU, Minefield_Query_PDU, Point_Object_State_PDU, IsGroupOf_PDU, Detonation_PDU, Areal_Object_State_PDU, SEES_PDU, Collision_PDU, Entity_State_Update_PDU, Attribute_PDU, IO_Report_PDU, Fire_PDU, Transfer_Control_Request_PDU, Electromagnetic_Emission_PDU, Data_Query_PDU, Linear_Object_State_PDU, Signal_PDU, IsPartOf_PDU, Record_Query_R_PDU, Minefield_Response_NACK_PDU, Receiver_PDU, Stop_Freeze_PDU, Comment_PDU, Object_State_Header, Warfare_Header, Acknowledge_PDU, Entity_Damage_Status_PDU, Start_Resume_PDU, Set_Record_R_PDU, Radio_Communications_Header, Resupply_Received_PDU, Articulated_Parts_PDU, Simulation_Management_Header, Record_R_PDU, IO_Header, LE_Header, Logistics_Header, Action_Request_PDU, Repair_Response_PDU, Data_PDU, Event_Report_PDU, Minefield_Header, Action_Response_PDU, Create_Entity_PDU, Repair_Complete_PDU, Service_Request_PDU, Create_Entity_R_PDU, Stop_Freeze_R_PDU, Start_Resume_R_PDU, Data_R_PDU, Action_Request_R_PDU, Set_Data_R_PDU, and Data_Query_R_PDU.
|
virtual |
Description: Convert To Network Data.
Reimplemented from Header6.
Reimplemented in Aggregate_State_PDU, Entity_State_PDU, LE_Detonation_PDU, Directed_Energy_Fire_PDU, Appearance_PDU, Gridded_Data_PDU, TSPI_PDU, Transmitter_PDU, Environmental_Process_PDU, Minefield_Data_PDU, Intercom_Control_PDU, LE_Fire_PDU, Minefield_State_PDU, Collision_Elastic_PDU, IFF_PDU, IO_Action_PDU, Underwater_Acoustic_PDU, Designator_PDU, Minefield_Query_PDU, Point_Object_State_PDU, IsGroupOf_PDU, Detonation_PDU, Areal_Object_State_PDU, SEES_PDU, Collision_PDU, Entity_State_Update_PDU, Attribute_PDU, IO_Report_PDU, Fire_PDU, Transfer_Control_Request_PDU, Electromagnetic_Emission_PDU, Data_Query_PDU, Linear_Object_State_PDU, Signal_PDU, IsPartOf_PDU, Record_Query_R_PDU, Minefield_Response_NACK_PDU, Receiver_PDU, Stop_Freeze_PDU, Comment_PDU, Object_State_Header, Warfare_Header, Acknowledge_PDU, Entity_Damage_Status_PDU, Set_Record_R_PDU, Start_Resume_PDU, Radio_Communications_Header, Resupply_Received_PDU, Articulated_Parts_PDU, Simulation_Management_Header, Record_R_PDU, IO_Header, LE_Header, Logistics_Header, Action_Request_PDU, Repair_Response_PDU, Data_PDU, Event_Report_PDU, Minefield_Header, Action_Response_PDU, Create_Entity_PDU, Repair_Complete_PDU, Service_Request_PDU, Create_Entity_R_PDU, Stop_Freeze_R_PDU, Data_R_PDU, Start_Resume_R_PDU, Action_Request_R_PDU, Set_Data_R_PDU, and Data_Query_R_PDU.
|
virtual |
Reimplemented from Header6.
Reimplemented in Aggregate_State_PDU, Entity_State_PDU, LE_Detonation_PDU, Directed_Energy_Fire_PDU, Appearance_PDU, Gridded_Data_PDU, TSPI_PDU, Transmitter_PDU, Environmental_Process_PDU, Minefield_Data_PDU, Intercom_Control_PDU, LE_Fire_PDU, Minefield_State_PDU, Collision_Elastic_PDU, IFF_PDU, IO_Action_PDU, Underwater_Acoustic_PDU, Designator_PDU, Minefield_Query_PDU, Point_Object_State_PDU, IsGroupOf_PDU, Detonation_PDU, Areal_Object_State_PDU, SEES_PDU, Collision_PDU, Entity_State_Update_PDU, Attribute_PDU, IO_Report_PDU, Fire_PDU, Transfer_Control_Request_PDU, Electromagnetic_Emission_PDU, Data_Query_PDU, Linear_Object_State_PDU, Signal_PDU, IsPartOf_PDU, Record_Query_R_PDU, Minefield_Response_NACK_PDU, Receiver_PDU, Stop_Freeze_PDU, Comment_PDU, Object_State_Header, Warfare_Header, Acknowledge_PDU, Entity_Damage_Status_PDU, Set_Record_R_PDU, Start_Resume_PDU, Radio_Communications_Header, Resupply_Received_PDU, Articulated_Parts_PDU, Simulation_Management_Header, Record_R_PDU, IO_Header, LE_Header, Logistics_Header, Action_Request_PDU, Repair_Response_PDU, Data_PDU, Event_Report_PDU, Minefield_Header, Action_Response_PDU, Create_Entity_PDU, Repair_Complete_PDU, Service_Request_PDU, Create_Entity_R_PDU, Stop_Freeze_R_PDU, Data_R_PDU, Start_Resume_R_PDU, Action_Request_R_PDU, Set_Data_R_PDU, and Data_Query_R_PDU.
| KUINT8 m_ui8PDUStatusTEI |
| KUINT8 m_ui8PDUStatusLVC |
| KUINT8 m_ui8PDUStatusCEI |
| KUINT8 m_ui8PDUStatusFTI |
| KUINT8 m_ui8PDUStatusBit5 |
| KUINT8 m_ui8PDUStatusDTI_RAI_IAI |
| KUINT8 m_ui8PDUStatusBit6 |
| KUINT8 m_ui8PDUStatusSM |
| KUINT8 m_ui8PDUStatus |
| union { ... } m_PDUStatusUnion |
