#include <Entity_State_PDU.h>

Inheritance diagram for Entity_State_PDU:

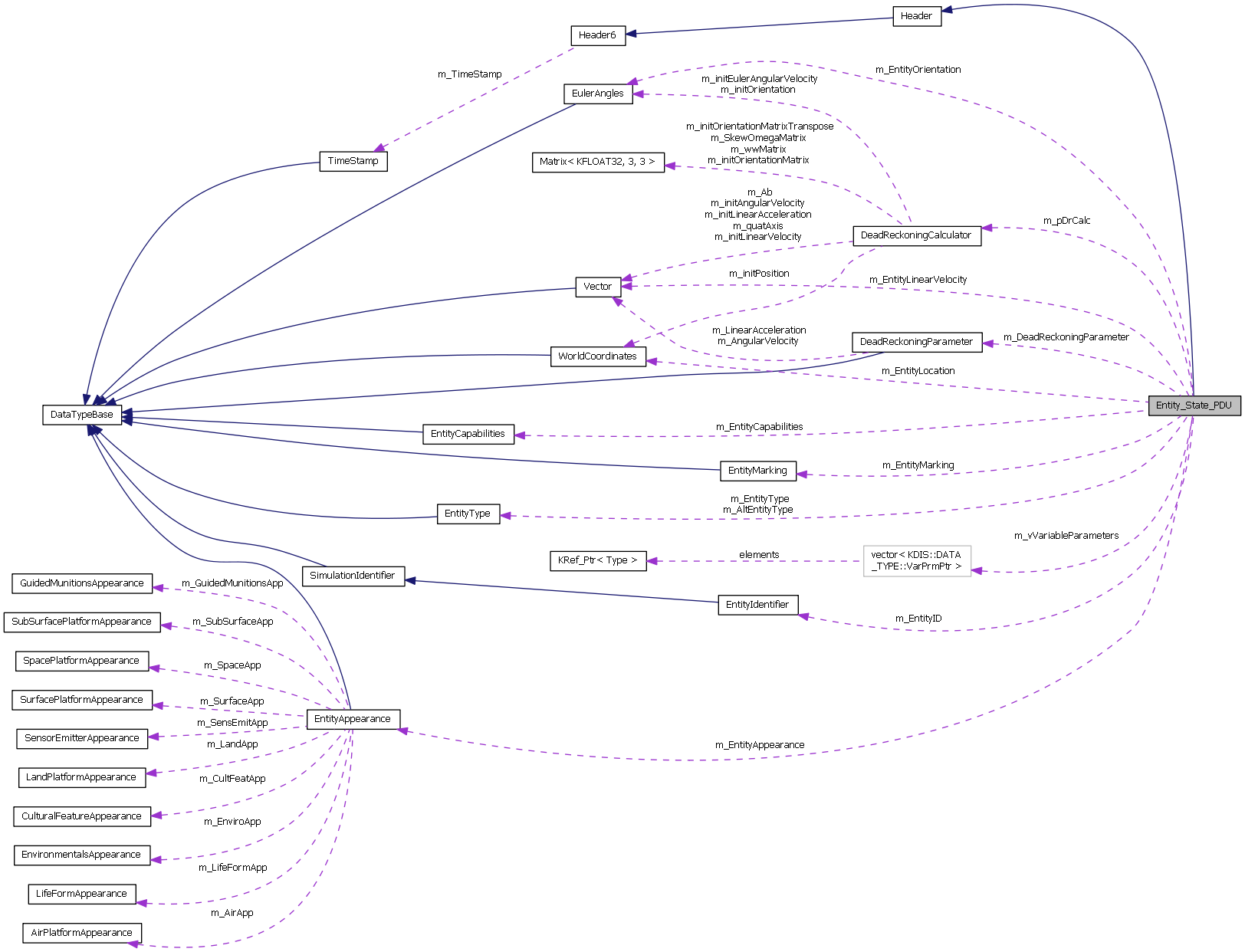

Collaboration diagram for Entity_State_PDU:

[legend]

Public Member Functions
void	AddVariableParameter (KDIS::DATA_TYPE::VarPrmPtr VP)
	Description: Information associated with an entity or detonation, not otherwise accounted. More...

void	ApplyDeadReckoning (KFLOAT64 totalTimeSinceDrReset) throw ( KException )

void	ClearVariableParameters ()

virtual void	Decode (KDataStream &stream, bool ignoreHeader=false) throw ( KException )
	Description: Convert From Network Data. More...

virtual KDataStream	Encode () const
	Description: Convert To Network Data. More...

virtual void	Encode (KDataStream &stream) const

	Entity_State_PDU ()

	Entity_State_PDU (KDataStream &stream) throw ( KException )

	Entity_State_PDU (const Header &H, KDataStream &stream) throw ( KException )

	Entity_State_PDU (const KDIS::DATA_TYPE::EntityIdentifier &EI, KDIS::DATA_TYPE::ENUMS::ForceID ID, const KDIS::DATA_TYPE::EntityType &Type, const KDIS::DATA_TYPE::EntityType &AltType, const KDIS::DATA_TYPE::Vector &EntityLinearVelocity, const KDIS::DATA_TYPE::WorldCoordinates &EntityLocation, const KDIS::DATA_TYPE::EulerAngles &EntityOrientation, const KDIS::DATA_TYPE::EntityAppearance &EA, const KDIS::DATA_TYPE::DeadReckoningParameter &DRP, const KDIS::DATA_TYPE::EntityMarking &EM, const KDIS::DATA_TYPE::EntityCapabilities &EC)

const KDIS::DATA_TYPE::EntityType &	GetAltEntityType () const

KDIS::DATA_TYPE::EntityType &	GetAltEntityType ()

virtual KString	GetAsString () const
	Description: Returns a string representation of the PDU. Great for debugging! More...

KDIS::UTILS::DeadReckoningCalculator *	GetDeadReckoningCalculator ()

const KDIS::DATA_TYPE::DeadReckoningParameter &	GetDeadReckoningParameter () const

KDIS::DATA_TYPE::DeadReckoningParameter &	GetDeadReckoningParameter ()

const KDIS::DATA_TYPE::EntityAppearance &	GetEntityAppearance () const

KDIS::DATA_TYPE::EntityAppearance &	GetEntityAppearance ()

const KDIS::DATA_TYPE::EntityCapabilities &	GetEntityCapabilities () const

KDIS::DATA_TYPE::EntityCapabilities &	GetEntityCapabilities ()

const KDIS::DATA_TYPE::EntityIdentifier &	GetEntityIdentifier () const

KDIS::DATA_TYPE::EntityIdentifier &	GetEntityIdentifier ()

const KDIS::DATA_TYPE::Vector &	GetEntityLinearVelocity () const

KDIS::DATA_TYPE::Vector &	GetEntityLinearVelocity ()

const KDIS::DATA_TYPE::WorldCoordinates &	GetEntityLocation () const

KDIS::DATA_TYPE::WorldCoordinates &	GetEntityLocation ()

const KDIS::DATA_TYPE::EntityMarking &	GetEntityMarking () const

KDIS::DATA_TYPE::EntityMarking &	GetEntityMarking ()

const KDIS::DATA_TYPE::EulerAngles &	GetEntityOrientation () const

KDIS::DATA_TYPE::EulerAngles &	GetEntityOrientation ()

const KDIS::DATA_TYPE::EntityType &	GetEntityType () const

KDIS::DATA_TYPE::EntityType &	GetEntityType ()

KDIS::DATA_TYPE::ENUMS::ForceID	GetForceID () const

KUINT8	GetNumberOfVariableParams () const
	Description: Number of variable parameters. More...

const std::vector < KDIS::DATA_TYPE::VarPrmPtr > &	GetVariableParameters () const

void	InitDeadReckoning ()
	Description: Initialise the dead reckoning object. Call this first. More...

KBOOL	operator!= (const Entity_State_PDU &Value) const

KBOOL	operator== (const Entity_State_PDU &Value) const

void	ResetDeadReckoning ()

void	SetAltEntityType (const KDIS::DATA_TYPE::EntityType &Type)

void	SetDeadReckoningCalculator (KDIS::UTILS::DeadReckoningCalculator *DR)

void	SetDeadReckoningParameter (const KDIS::DATA_TYPE::DeadReckoningParameter &DRP)

void	SetEntityAppearance (const KDIS::DATA_TYPE::EntityAppearance &EA)

void	SetEntityCapabilities (const KDIS::DATA_TYPE::EntityCapabilities &EC)
	Description: Entity Capabilities. Such as has fuel/ammo supply etc. More...

void	SetEntityIdentifier (const KDIS::DATA_TYPE::EntityIdentifier &EI)

void	SetEntityLinearVelocity (const KDIS::DATA_TYPE::Vector &ELV)
	Description: Represented as Linear Velocity Vector. m/s. More...

void	SetEntityLocation (const KDIS::DATA_TYPE::WorldCoordinates &EL)

void	SetEntityMarking (const KDIS::DATA_TYPE::EntityMarking &EM)
	Description: Entity Marking. This can be the entities name,Army Markings or Chevrons. More...

void	SetEntityOrientation (const KDIS::DATA_TYPE::EulerAngles &EO)

void	SetEntityType (const KDIS::DATA_TYPE::EntityType &Type)

void	SetForceID (KDIS::DATA_TYPE::ENUMS::ForceID ID)

void	SetVariableParameters (const std::vector< KDIS::DATA_TYPE::VarPrmPtr > &VP)

virtual	~Entity_State_PDU ()

Public Member Functions inherited from Header7
KUINT8	GetPDUStatus () const

KBOOL	GetPDUStatusCEI () const

KDIS::DATA_TYPE::ENUMS::DetonationType	GetPDUStatusDTI () const

KBOOL	GetPDUStatusFTI () const

KDIS::DATA_TYPE::ENUMS::AttachedIndicator	GetPDUStatusIAI () const

KDIS::DATA_TYPE::ENUMS::LVCIndicator	GetPDUStatusLVC () const

KDIS::DATA_TYPE::ENUMS::AttachedIndicator	GetPDUStatusRAI () const

KBOOL	GetPDUStatusSM () const

KBOOL	GetPDUStatusTEI () const

	Header7 ()

	Header7 (KDataStream &stream) throw ( KException )

	Header7 (KDIS::DATA_TYPE::ENUMS::ProtocolVersion PV, KUINT8 ExerciseID, KDIS::DATA_TYPE::ENUMS::PDUType PT, KDIS::DATA_TYPE::ENUMS::ProtocolFamily PF, const KDIS::DATA_TYPE::TimeStamp &TS, KUINT16 PDULength)

KBOOL	operator!= (const Header7 &Value) const

KBOOL	operator== (const Header7 &Value) const

void	SetPDUStatus (KUINT8 S)
	Description: The entire PDU status field. More...

void	SetPDUStatusCEI (KBOOL CEI)

void	SetPDUStatusDTI (KDIS::DATA_TYPE::ENUMS::DetonationType DTI)

void	SetPDUStatusFTI (KBOOL FTI)

void	SetPDUStatusIAI (KDIS::DATA_TYPE::ENUMS::AttachedIndicator RAI)

void	SetPDUStatusLVC (KDIS::DATA_TYPE::ENUMS::LVCIndicator LVC)

void	SetPDUStatusRAI (KDIS::DATA_TYPE::ENUMS::AttachedIndicator RAI)

void	SetPDUStatusSM (KBOOL SM)

void	SetPDUStatusTEI (KBOOL TEI)
	PDU: See Header7 description to see which PDU's use this field. More...

virtual	~Header7 ()

Public Member Functions inherited from Header6
KUINT8	GetExerciseID () const

KUINT16	GetPDULength () const

KDIS::DATA_TYPE::ENUMS::PDUType	GetPDUType () const

KDIS::DATA_TYPE::ENUMS::ProtocolFamily	GetProtocolFamily () const

KDIS::DATA_TYPE::ENUMS::ProtocolVersion	GetProtocolVersion () const

const KDIS::DATA_TYPE::TimeStamp &	GetTimeStamp () const

KDIS::DATA_TYPE::TimeStamp &	GetTimeStamp ()

	Header6 ()

	Header6 (KDataStream &stream) throw ( KException )

	Header6 (KDIS::DATA_TYPE::ENUMS::ProtocolVersion PV, KUINT8 ExerciseID, KDIS::DATA_TYPE::ENUMS::PDUType PT, KDIS::DATA_TYPE::ENUMS::ProtocolFamily PF, const KDIS::DATA_TYPE::TimeStamp &TS, KUINT16 PDULength)

KBOOL	operator!= (const Header6 &Value) const

KBOOL	operator== (const Header6 &Value) const

void	SetExerciseID (KUINT8 EID)

void	SetPDULength (KUINT16 PDUL)

void	SetPDUType (KDIS::DATA_TYPE::ENUMS::PDUType Type)

void	SetProtocolFamily (KDIS::DATA_TYPE::ENUMS::ProtocolFamily PF)

void	SetProtocolVersion (KDIS::DATA_TYPE::ENUMS::ProtocolVersion PV)
	to the mimimum version of DIS required to support the current PDU. More...

void	SetTimeStamp (const KDIS::DATA_TYPE::TimeStamp &TS)

virtual	~Header6 ()

Static Public Attributes
static const KUINT16	ENTITY_STATE_PDU_SIZE = 144

Static Public Attributes inherited from Header6
static const KUINT16	HEADER6_PDU_SIZE = 12

Protected Attributes
KDIS::DATA_TYPE::EntityType	m_AltEntityType

KDIS::DATA_TYPE::DeadReckoningParameter	m_DeadReckoningParameter

KDIS::DATA_TYPE::EntityAppearance	m_EntityAppearance

KDIS::DATA_TYPE::EntityCapabilities	m_EntityCapabilities

KDIS::DATA_TYPE::EntityIdentifier	m_EntityID

KDIS::DATA_TYPE::Vector	m_EntityLinearVelocity

KDIS::DATA_TYPE::WorldCoordinates	m_EntityLocation

KDIS::DATA_TYPE::EntityMarking	m_EntityMarking

KDIS::DATA_TYPE::EulerAngles	m_EntityOrientation

KDIS::DATA_TYPE::EntityType	m_EntityType

KDIS::UTILS::DeadReckoningCalculator *	m_pDrCalc

KUINT8	m_ui8ForceID

KUINT8	m_ui8NumOfVariableParams

std::vector < KDIS::DATA_TYPE::VarPrmPtr >	m_vVariableParameters

Protected Attributes inherited from Header7
union {
struct {
union {
struct {
KUINT8 m_ui8PDUStatusBit5: 1

KUINT8 m_ui8PDUStatusFTI: 1

}

KUINT8 m_ui8PDUStatusDTI_RAI_IAI: 2

}

KUINT8 m_ui8PDUStatusBit6: 1

KUINT8 m_ui8PDUStatusCEI: 1

KUINT8 m_ui8PDUStatusLVC: 2

KUINT8 m_ui8PDUStatusSM: 1

KUINT8 m_ui8PDUStatusTEI: 1

}

KUINT8 m_ui8PDUStatus

}	m_PDUStatusUnion

Protected Attributes inherited from Header6
KDIS::DATA_TYPE::TimeStamp	m_TimeStamp

KUINT16	m_ui16PDULength

KUINT8	m_ui8ExerciseID

KUINT8	m_ui8Padding1

KUINT8	m_ui8Padding2

KUINT8	m_ui8PDUType

KUINT8	m_ui8ProtocolFamily

KUINT8	m_ui8ProtocolVersion

Constructor & Destructor Documentation

Entity_State_PDU ( )

Entity_State_PDU	(	KDataStream &	stream	)
throw	(	KException
	)

Entity_State_PDU	(	const Header &	H,
		KDataStream &	stream
	)
throw	(	KException
	)

Entity_State_PDU	(	const KDIS::DATA_TYPE::EntityIdentifier &	EI,
		KDIS::DATA_TYPE::ENUMS::ForceID	ID,
		const KDIS::DATA_TYPE::EntityType &	Type,
		const KDIS::DATA_TYPE::EntityType &	AltType,
		const KDIS::DATA_TYPE::Vector &	EntityLinearVelocity,
		const KDIS::DATA_TYPE::WorldCoordinates &	EntityLocation,
		const KDIS::DATA_TYPE::EulerAngles &	EntityOrientation,
		const KDIS::DATA_TYPE::EntityAppearance &	EA,
		const KDIS::DATA_TYPE::DeadReckoningParameter &	DRP,
		const KDIS::DATA_TYPE::EntityMarking &	EM,
		const KDIS::DATA_TYPE::EntityCapabilities &	EC
	)

virtual ~Entity_State_PDU ( )

virtual

Member Function Documentation

void SetEntityIdentifier ( const KDIS::DATA_TYPE::EntityIdentifier & EI )

Description: ID of entity issuing the PDU. This is a unique identifier made up of 3 values. The first 2 represent the simulation address.(site, application) and the final is the entity. This ID should be unqiue to the simulation.

const KDIS::DATA_TYPE::EntityIdentifier& GetEntityIdentifier ( ) const

KDIS::DATA_TYPE::EntityIdentifier& GetEntityIdentifier ( )

void SetForceID ( KDIS::DATA_TYPE::ENUMS::ForceID ID )

Description: Force ID. Enumerated value representing the force the entity belongs to, such as friendly, opposing or neutral.

KDIS::DATA_TYPE::ENUMS::ForceID GetForceID ( ) const

KUINT8 GetNumberOfVariableParams ( ) const

Description: Number of variable parameters.

void SetEntityType ( const KDIS::DATA_TYPE::EntityType & Type )

Description: Entity Type. Consists of 7 values used to represent the type of entity. Please see DIS Enums document found on the SISO website for a full list of enumerations available.

const KDIS::DATA_TYPE::EntityType& GetEntityType ( ) const

KDIS::DATA_TYPE::EntityType& GetEntityType ( )

void SetAltEntityType ( const KDIS::DATA_TYPE::EntityType & Type )

Description: This identifies the entity type to be displayed by members of forces other than that of the issuing entity. I.E This could be used to represent an entity in disguise.

const KDIS::DATA_TYPE::EntityType& GetAltEntityType ( ) const

KDIS::DATA_TYPE::EntityType& GetAltEntityType ( )

void SetEntityLinearVelocity ( const KDIS::DATA_TYPE::Vector & ELV )

Description: Represented as Linear Velocity Vector. m/s.

const KDIS::DATA_TYPE::Vector& GetEntityLinearVelocity ( ) const

KDIS::DATA_TYPE::Vector& GetEntityLinearVelocity ( )

void SetEntityLocation ( const KDIS::DATA_TYPE::WorldCoordinates & EL )

Description: Entity Location in Geocentric world coordinates. Note: See KConversions.h for some useful coordinate conversions.

const KDIS::DATA_TYPE::WorldCoordinates& GetEntityLocation ( ) const

KDIS::DATA_TYPE::WorldCoordinates& GetEntityLocation ( )

void SetEntityOrientation ( const KDIS::DATA_TYPE::EulerAngles & EO )

Description: Orientation of entity. Geocentric Euler Angles. Note: See KConversions.h for some useful orientation conversions.

const KDIS::DATA_TYPE::EulerAngles& GetEntityOrientation ( ) const

KDIS::DATA_TYPE::EulerAngles& GetEntityOrientation ( )

void SetEntityAppearance ( const KDIS::DATA_TYPE::EntityAppearance & EA )

Description: Entity Appearance. Appearance is communicated via a series of bit flags/values. Such as damage states, smoking, on fire etc. Note The "Specific Entity Appearance" varies depending on entity type, E.G Air, Ground, Lifeform etc.

const KDIS::DATA_TYPE::EntityAppearance& GetEntityAppearance ( ) const

KDIS::DATA_TYPE::EntityAppearance& GetEntityAppearance ( )

void SetDeadReckoningParameter ( const KDIS::DATA_TYPE::DeadReckoningParameter & DRP )

Description: Dead Reckoning Parameter. Dead Reckoning is used to provide an estimate of an entities position between PDUs. Using dead reckoning an entity can be given the appearance that it is moving smoothly in an environment. The dead reckoning values are used to predict where the entity will be within the foreseeable future. When a new entity update is received the entities position is corrected via a process called "smoothing".

const KDIS::DATA_TYPE::DeadReckoningParameter& GetDeadReckoningParameter ( ) const

KDIS::DATA_TYPE::DeadReckoningParameter& GetDeadReckoningParameter ( )

void SetDeadReckoningCalculator ( KDIS::UTILS::DeadReckoningCalculator * DR )

Description: Set or return the DeadReckoningCalculator object. Returns null pointer if InitDeadReckoning has not been called first.

KDIS::UTILS::DeadReckoningCalculator* GetDeadReckoningCalculator ( )

void InitDeadReckoning ( )

Description: Initialise the dead reckoning object. Call this first.

void ResetDeadReckoning ( )

Description: Resets the dead reckoning object. For a local entity should be called before sending out an entity state PDU so the local entity can dead-reckon itself. For a remote entity should be called when an ES PDU is received. Note: Nothing will happen if you have not initialised the dead reckoning calculator first.

void ApplyDeadReckoning	(	KFLOAT64	totalTimeSinceDrReset	)
throw	(	KException
	)

Description: Applies a dead reckoning transformation to the entity for a time step. Throws INVALID_OPERATION exception if InitDeadReckoning has not been called first.

void SetEntityMarking ( const KDIS::DATA_TYPE::EntityMarking & EM )

Description: Entity Marking. This can be the entities name,Army Markings or Chevrons.

const KDIS::DATA_TYPE::EntityMarking& GetEntityMarking ( ) const

KDIS::DATA_TYPE::EntityMarking& GetEntityMarking ( )

void SetEntityCapabilities ( const KDIS::DATA_TYPE::EntityCapabilities & EC )

Description: Entity Capabilities. Such as has fuel/ammo supply etc.

const KDIS::DATA_TYPE::EntityCapabilities& GetEntityCapabilities ( ) const

KDIS::DATA_TYPE::EntityCapabilities& GetEntityCapabilities ( )

void AddVariableParameter ( KDIS::DATA_TYPE::VarPrmPtr VP )

Description: Information associated with an entity or detonation, not otherwise accounted.

See VariableParameter for supported/implemented types.

void SetVariableParameters ( const std::vector< KDIS::DATA_TYPE::VarPrmPtr > & VP )
