#include <Fire_PDU.h>

Inheritance diagram for Fire_PDU:

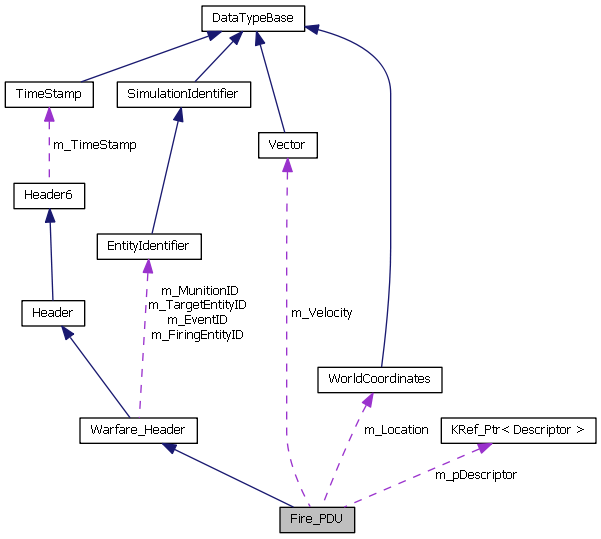

Collaboration diagram for Fire_PDU:

[legend]

Public Member Functions
virtual void	Decode (KDataStream &stream, bool ignoreHeader=false) throw ( KException )
	Description: Convert From Network Data. More...

virtual KDataStream	Encode () const
	Description: Convert To Network Data. More...

virtual void	Encode (KDataStream &stream) const

	Fire_PDU ()

	Fire_PDU (KDataStream &stream) throw ( KException )

	Fire_PDU (const Header &H, KDataStream &stream) throw ( KException )

	Fire_PDU (const Warfare_Header &WarfareHeader, KUINT32 FireMissionIndex, const KDIS::DATA_TYPE::WorldCoordinates &Location, KDIS::DATA_TYPE::DescPtr Desc, const KDIS::DATA_TYPE::Vector &Velocity, KFLOAT32 Range)

	Fire_PDU (const KDIS::DATA_TYPE::EntityIdentifier &FiringEntID, const KDIS::DATA_TYPE::EntityIdentifier &TargetEntID, const KDIS::DATA_TYPE::EntityIdentifier &MunitionID, const KDIS::DATA_TYPE::EntityIdentifier &EventID, KUINT32 FireMissionIndex, const KDIS::DATA_TYPE::WorldCoordinates &Location, KDIS::DATA_TYPE::DescPtr Desc, const KDIS::DATA_TYPE::Vector &Velocity, KFLOAT32 Range)

virtual KString	GetAsString () const
	Description: Returns a string representation of the PDU. More...

const KDIS::DATA_TYPE::DescPtr	GetDescriptor () const

KDIS::DATA_TYPE::DescPtr	GetDescriptor ()

KUINT32	GetFireMissionIndex () const

const KDIS::DATA_TYPE::WorldCoordinates &	GetLocation () const

KDIS::DATA_TYPE::WorldCoordinates &	GetLocation ()

KDIS::DATA_TYPE::ENUMS::FireType	GetPDUStatusFireType () const

KFLOAT32	GetRange () const

const KDIS::DATA_TYPE::Vector &	GetVelocity () const

KDIS::DATA_TYPE::Vector &	GetVelocity ()

KBOOL	operator!= (const Fire_PDU &Value) const

KBOOL	operator== (const Fire_PDU &Value) const

void	SetDescriptor (KDIS::DATA_TYPE::DescPtr D)

void	SetFireMissionIndex (KUINT32 FMI)

void	SetLocation (const KDIS::DATA_TYPE::WorldCoordinates &L)

void	SetPDUStatusFireType (KDIS::DATA_TYPE::ENUMS::FireType FT)
	Description: Indicates the descriptor type used. FTI. More...

void	SetRange (KFLOAT32 R)

void	SetVelocity (const KDIS::DATA_TYPE::Vector &V)
	Description: Velocity of fire munition. More...

virtual	~Fire_PDU ()

Public Member Functions inherited from Warfare_Header
const KDIS::DATA_TYPE::EntityIdentifier &	GetEventID () const

KDIS::DATA_TYPE::EntityIdentifier &	GetEventID ()

const KDIS::DATA_TYPE::EntityIdentifier &	GetFiringEntityID () const

KDIS::DATA_TYPE::EntityIdentifier &	GetFiringEntityID ()

const KDIS::DATA_TYPE::EntityIdentifier &	GetMunitionID () const

KDIS::DATA_TYPE::EntityIdentifier &	GetMunitionID ()

const KDIS::DATA_TYPE::EntityIdentifier &	GetTargetEntityID () const

KDIS::DATA_TYPE::EntityIdentifier &	GetTargetEntityID ()

KBOOL	operator!= (const Warfare_Header &Value) const

KBOOL	operator== (const Warfare_Header &Value) const

void	SetEventID (const KDIS::DATA_TYPE::EntityIdentifier &ID)

void	SetFiringEntityID (const KDIS::DATA_TYPE::EntityIdentifier &ID)
	Description: Firing Entity. More...

void	SetMunitionID (const KDIS::DATA_TYPE::EntityIdentifier &ID)

void	SetTargetEntityID (const KDIS::DATA_TYPE::EntityIdentifier &ID)

	Warfare_Header ()

	Warfare_Header (const Header &H)

	Warfare_Header (const KDIS::DATA_TYPE::EntityIdentifier &FiringEntID, const KDIS::DATA_TYPE::EntityIdentifier &TargetEntID, const KDIS::DATA_TYPE::EntityIdentifier &MunitionID, const KDIS::DATA_TYPE::EntityIdentifier &EventID)

virtual	~Warfare_Header ()

Public Member Functions inherited from Header7
KUINT8	GetPDUStatus () const

KBOOL	GetPDUStatusCEI () const

KDIS::DATA_TYPE::ENUMS::DetonationType	GetPDUStatusDTI () const

KBOOL	GetPDUStatusFTI () const

KDIS::DATA_TYPE::ENUMS::AttachedIndicator	GetPDUStatusIAI () const

KDIS::DATA_TYPE::ENUMS::LVCIndicator	GetPDUStatusLVC () const

KDIS::DATA_TYPE::ENUMS::AttachedIndicator	GetPDUStatusRAI () const

KBOOL	GetPDUStatusSM () const

KBOOL	GetPDUStatusTEI () const

	Header7 ()

	Header7 (KDataStream &stream) throw ( KException )

	Header7 (KDIS::DATA_TYPE::ENUMS::ProtocolVersion PV, KUINT8 ExerciseID, KDIS::DATA_TYPE::ENUMS::PDUType PT, KDIS::DATA_TYPE::ENUMS::ProtocolFamily PF, const KDIS::DATA_TYPE::TimeStamp &TS, KUINT16 PDULength)

KBOOL	operator!= (const Header7 &Value) const

KBOOL	operator== (const Header7 &Value) const

void	SetPDUStatus (KUINT8 S)
	Description: The entire PDU status field. More...

void	SetPDUStatusCEI (KBOOL CEI)

void	SetPDUStatusDTI (KDIS::DATA_TYPE::ENUMS::DetonationType DTI)

void	SetPDUStatusFTI (KBOOL FTI)

void	SetPDUStatusIAI (KDIS::DATA_TYPE::ENUMS::AttachedIndicator RAI)

void	SetPDUStatusLVC (KDIS::DATA_TYPE::ENUMS::LVCIndicator LVC)

void	SetPDUStatusRAI (KDIS::DATA_TYPE::ENUMS::AttachedIndicator RAI)

void	SetPDUStatusSM (KBOOL SM)

void	SetPDUStatusTEI (KBOOL TEI)
	PDU: See Header7 description to see which PDU's use this field. More...

virtual	~Header7 ()

Public Member Functions inherited from Header6
KUINT8	GetExerciseID () const

KUINT16	GetPDULength () const

KDIS::DATA_TYPE::ENUMS::PDUType	GetPDUType () const

KDIS::DATA_TYPE::ENUMS::ProtocolFamily	GetProtocolFamily () const

KDIS::DATA_TYPE::ENUMS::ProtocolVersion	GetProtocolVersion () const

const KDIS::DATA_TYPE::TimeStamp &	GetTimeStamp () const

KDIS::DATA_TYPE::TimeStamp &	GetTimeStamp ()

	Header6 ()

	Header6 (KDataStream &stream) throw ( KException )

	Header6 (KDIS::DATA_TYPE::ENUMS::ProtocolVersion PV, KUINT8 ExerciseID, KDIS::DATA_TYPE::ENUMS::PDUType PT, KDIS::DATA_TYPE::ENUMS::ProtocolFamily PF, const KDIS::DATA_TYPE::TimeStamp &TS, KUINT16 PDULength)

KBOOL	operator!= (const Header6 &Value) const

KBOOL	operator== (const Header6 &Value) const

void	SetExerciseID (KUINT8 EID)

void	SetPDULength (KUINT16 PDUL)

void	SetPDUType (KDIS::DATA_TYPE::ENUMS::PDUType Type)

void	SetProtocolFamily (KDIS::DATA_TYPE::ENUMS::ProtocolFamily PF)

void	SetProtocolVersion (KDIS::DATA_TYPE::ENUMS::ProtocolVersion PV)
	to the mimimum version of DIS required to support the current PDU. More...

void	SetTimeStamp (const KDIS::DATA_TYPE::TimeStamp &TS)

virtual	~Header6 ()

Static Public Attributes
static const KUINT16	FIRE_PDU_SIZE = 96

Static Public Attributes inherited from Warfare_Header
static const KUINT16	WARFARE_HEADER_SIZE = 36

Static Public Attributes inherited from Header6
static const KUINT16	HEADER6_PDU_SIZE = 12

Protected Attributes
KFLOAT32	m_f32Range

KDIS::DATA_TYPE::WorldCoordinates	m_Location

KDIS::DATA_TYPE::DescPtr	m_pDescriptor

KUINT32	m_ui32FireMissionIndex

KDIS::DATA_TYPE::Vector	m_Velocity

Protected Attributes inherited from Warfare_Header
KDIS::DATA_TYPE::EntityIdentifier	m_EventID

KDIS::DATA_TYPE::EntityIdentifier	m_FiringEntityID

KDIS::DATA_TYPE::EntityIdentifier	m_MunitionID

KDIS::DATA_TYPE::EntityIdentifier	m_TargetEntityID

Protected Attributes inherited from Header7
union {
struct {
union {
struct {
KUINT8 m_ui8PDUStatusBit5: 1

KUINT8 m_ui8PDUStatusFTI: 1

}

KUINT8 m_ui8PDUStatusDTI_RAI_IAI: 2

}

KUINT8 m_ui8PDUStatusBit6: 1

KUINT8 m_ui8PDUStatusCEI: 1

KUINT8 m_ui8PDUStatusLVC: 2

KUINT8 m_ui8PDUStatusSM: 1

KUINT8 m_ui8PDUStatusTEI: 1

}

KUINT8 m_ui8PDUStatus

}	m_PDUStatusUnion

Protected Attributes inherited from Header6
KDIS::DATA_TYPE::TimeStamp	m_TimeStamp

KUINT16	m_ui16PDULength

KUINT8	m_ui8ExerciseID

KUINT8	m_ui8Padding1

KUINT8	m_ui8Padding2

KUINT8	m_ui8PDUType

KUINT8	m_ui8ProtocolFamily

KUINT8	m_ui8ProtocolVersion

Constructor & Destructor Documentation

Fire_PDU ( )

Fire_PDU	(	KDataStream &	stream	)
throw	(	KException
	)

Fire_PDU	(	const Header &	H,
		KDataStream &	stream
	)
throw	(	KException
	)

Fire_PDU	(	const Warfare_Header &	WarfareHeader,
		KUINT32	FireMissionIndex,
		const KDIS::DATA_TYPE::WorldCoordinates &	Location,
		KDIS::DATA_TYPE::DescPtr	Desc,
		const KDIS::DATA_TYPE::Vector &	Velocity,
		KFLOAT32	Range
	)

Fire_PDU	(	const KDIS::DATA_TYPE::EntityIdentifier &	FiringEntID,
		const KDIS::DATA_TYPE::EntityIdentifier &	TargetEntID,
		const KDIS::DATA_TYPE::EntityIdentifier &	MunitionID,
		const KDIS::DATA_TYPE::EntityIdentifier &	EventID,
		KUINT32	FireMissionIndex,
		const KDIS::DATA_TYPE::WorldCoordinates &	Location,
		KDIS::DATA_TYPE::DescPtr	Desc,
		const KDIS::DATA_TYPE::Vector &	Velocity,
		KFLOAT32	Range
	)

virtual ~Fire_PDU ( )

virtual

Member Function Documentation

void SetPDUStatusFireType ( KDIS::DATA_TYPE::ENUMS::FireType FT )

Description: Indicates the descriptor type used. FTI.

KDIS::DATA_TYPE::ENUMS::FireType GetPDUStatusFireType ( ) const

void SetFireMissionIndex ( KUINT32 FMI )

Description: Identifies the fire mission. If unknown value will be symbolic value: NO_FIRE_MISSION

KUINT32 GetFireMissionIndex ( ) const

void SetLocation ( const KDIS::DATA_TYPE::WorldCoordinates & L )

Description: Location of fire event in world coordinates.

const KDIS::DATA_TYPE::WorldCoordinates& GetLocation ( ) const

KDIS::DATA_TYPE::WorldCoordinates& GetLocation ( )

void SetDescriptor ( KDIS::DATA_TYPE::DescPtr D )

Description: Descriptor, describes type of munition. Pre DIS 7 this will always be a MunitionDescriptor. In DIS 7 a Fire PDU can send a Munition Descriptor or an Expendable Descriptor. Setting this in DIS 7 will automatically set the FTI (PDUStatusFireType) field and will cause the protocol version to change to 7 if the type is Expendable. I leave it as default if the type is Munition. Note: By default this value will be a MunitionDescriptor, it is not null by default. Example usage in DIS 7: SetDescriptor( DescPtr( new ExplosionDescriptor() ) );

const KDIS::DATA_TYPE::DescPtr GetDescriptor ( ) const

KDIS::DATA_TYPE::DescPtr GetDescriptor ( )

void SetVelocity ( const KDIS::DATA_TYPE::Vector & V )

Description: Velocity of fire munition.

const KDIS::DATA_TYPE::Vector& GetVelocity ( ) const

KDIS::DATA_TYPE::Vector& GetVelocity ( )

void SetRange ( KFLOAT32 R )

Description: Range. Range that firing entity has calculated target to be.

KFLOAT32 GetRange ( ) const

virtual KString GetAsString ( ) const

virtual

Description: Returns a string representation of the PDU.

Reimplemented from Warfare_Header.

virtual void Decode	(	KDataStream &	stream,
		bool	ignoreHeader = `false`
	)
throw	(	KException
	)

virtual

Description: Convert From Network Data.

Reimplemented from Warfare_Header.

virtual KDataStream Encode ( ) const

virtual

Description: Convert To Network Data.

Reimplemented from Warfare_Header.

virtual void Encode ( KDataStream & stream ) const

virtual

Reimplemented from Warfare_Header.

KBOOL operator== ( const Fire_PDU & Value ) const

KBOOL operator!= ( const Fire_PDU & Value ) const

Member Data Documentation

KUINT32 m_ui32FireMissionIndex

protected

KDIS::DATA_TYPE::WorldCoordinates m_Location

protected

KDIS::DATA_TYPE::DescPtr m_pDescriptor

protected

KDIS::DATA_TYPE::Vector m_Velocity

protected

KFLOAT32 m_f32Range

protected

const KUINT16 FIRE_PDU_SIZE = 96

static

The documentation for this class was generated from the following file:

PDU/Warfare/Fire_PDU.h
