Bundle Class Reference

#include <Bundle.h>

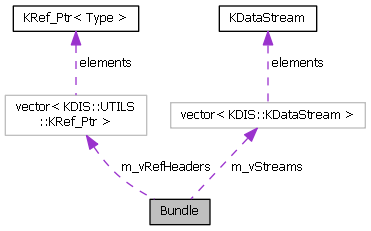

Collaboration diagram for Bundle:

Public Member Functions
void	AddPDU (const KDataStream &K) throw ( KException )
	Throws exeption PDU_TOO_LARGE if the total bundles length is greater than MAX_PDU_SIZE. More...
void	AddPDU (PduPtr H) throw ( KException )
	Bundle ()
void	ClearPDUs ()
	Description: Clears stored PDUs. More...
virtual KDataStream	Encode () const
	Description: Convert To Network Data. More...
virtual void	Encode (KDataStream &stream) const
virtual KString	GetAsString ()
	Description: Returns a string representation of the PDU. More...
KUINT16	GetLength ()
	Description: Returns total length of all PDU in bytes. More...
const std::vector< KDataStream > &	GetPDUStreams () const
	Description: Gets the stored PDU stremas or referenced PDUs. More...
const std::vector< PduPtr > &	GetRefPDUs () const
KBOOL	operator!= (const Bundle &Value) const
KBOOL	operator== (const Bundle &Value) const
void	SetPDUs (const std::vector< KDataStream > &P) throw ( KException )
	Throws exeption PDU_TOO_LARGE if the total bundles length is greater than MAX_PDU_SIZE. More...
void	SetPDUs (const std::vector< PduPtr > &P) throw ( KException )
void	SetPDUs (const std::vector< KDataStream > &Streams, const std::vector< PduPtr > &References) throw ( KException )
virtual	~Bundle ()

Protected Member Functions
void	calculateLength ()
	Description: Calculate the total length of the Bundle. More...

Protected Attributes
KUINT16	m_ui16Length
std::vector< PduPtr >	m_vRefHeaders
std::vector< KDataStream >	m_vStreams

Constructor & Destructor Documentation

Bundle

(

)

virtual ~Bundle ( )

virtual

Member Function Documentation

void calculateLength ( )

protected

Description: Calculate the total length of the Bundle.

void AddPDU	(	const KDataStream &	K	)
throw	(	KException
	)

Throws exeption PDU_TOO_LARGE if the total bundles length is greater than MAX_PDU_SIZE.

Description: Adds a PDU stream or referenced PDU to the bundle.

void AddPDU	(	PduPtr	H	)
throw	(	KException
	)

void SetPDUs	(	const std::vector< KDataStream > &	P	)
throw	(	KException
	)

Throws exeption PDU_TOO_LARGE if the total bundles length is greater than MAX_PDU_SIZE.

Description: Set multiple PDU.

void SetPDUs	(	const std::vector< PduPtr > &	P	)
throw	(	KException
	)

void SetPDUs	(	const std::vector< KDataStream > &	Streams,
		const std::vector< PduPtr > &	References
	)
throw	(	KException
	)

const std::vector<KDataStream>& GetPDUStreams

(

)

const

Description: Gets the stored PDU stremas or referenced PDUs.

const std::vector<PduPtr>& GetRefPDUs

(

)

const

void ClearPDUs

(

)

Description: Clears stored PDUs.

KUINT16 GetLength

(

)

Description: Returns total length of all PDU in bytes.

virtual KString GetAsString ( )

virtual

Description: Returns a string representation of the PDU.

virtual KDataStream Encode ( ) const

virtual

Description: Convert To Network Data.

virtual void Encode ( KDataStream &  stream ) const

virtual

KBOOL operator==

(

const Bundle &

Value

)

const

KBOOL operator!=

(

const Bundle &

Value

)

const

Member Data Documentation

std::vector<KDataStream> m_vStreams

protected

std::vector<PduPtr> m_vRefHeaders

protected

KUINT16 m_ui16Length

protected

---

The documentation for this class was generated from the following file:

• PDU/Bundle.h
